Toshiba Launches New Series of eFuse ICs Electronic Fuses That Can Be Used Repeatedly

Logo

– Introducing the compact, high-voltage “TCKE9 Series” –

KAWASAKI, Japan–(BUSINESS WIRE)–Jul. 18, 2024

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched a lineup of eight compact, high-voltage electronic fuses (eFuse ICs), the TCKE9 Series, that support multiple functions for the protection of power supply lines. Shipments of the first two products “TCKE903NL” and “TCKE905ANA” start today, with others to follow.

This press release features multimedia. View the full release here: https://www.businesswire.com/news/home/20240717112149/en/

Toshiba: TCKE9 Series eFuse IC that support multiple functions for the protection of power supply lines. (Graphic: Business Wire)

Toshiba: TCKE9 Series eFuse IC that support multiple functions for the protection of power supply lines. (Graphic: Business Wire)

The TCKE9 Series products have a current limit and voltage clamp function to protect the lines in power supply circuits against overcurrent and overvoltage conditions, something that standard physical fuses cannot do. Even in the event of abnormal overcurrent or overvoltage, the specified current and voltage are maintained.

The new products also feature over-temperature protection and short-circuit protection, which protects a circuit by immediately shutting off the eFuse IC when abnormal heat is generated in the circuit or an unexpected short-circuit occurs. A further eFuse IC advantage is the elimination of complex circuit design and a reduced component count, realizing much simpler circuit designs with fewer components and a smaller area than is possible with a protection function secured with discrete parts.

Toshiba intends to obtain IEC 62368-1 certification, the international safety standard for high level safety, for the eFuse ICs, which will also simplify certification tests customers’ devices are required to undergo.

The product lineup offers eight products: four, 3.3V, 5V, 12V, 20V, are suitable for overvoltage protection of a range of power supply voltages, and each has two types – an auto-retry type, where the eFuse IC automatically recovers the circuit itself, and a latch type, where recovery is triggered by an external signal. Customers can select the appropriate product for their requirements and the size of their equipment.

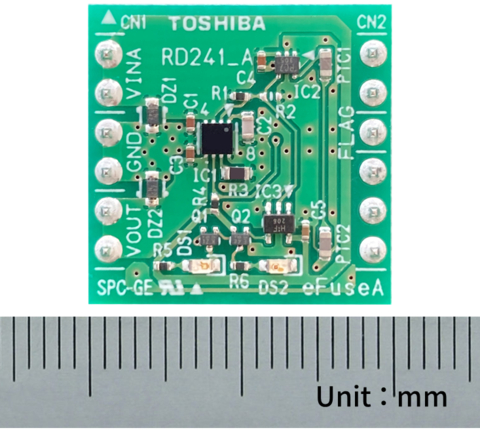

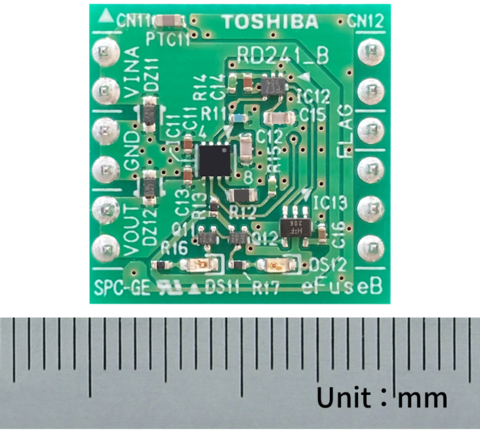

Reference designs for an eFuse IC Application Circuit (with Thermal Shutdown) and an eFuse IC Application Circuit (with Enhanced Overcurrent Protection) are available now on Toshiba’s website.

Applications

  • Protection of power supply circuits (servers, SSDs, laptop PCs, gaming consoles, augmented reality and virtual reality equipment, etc.)

Features

  • Maximum input voltage : VIN (max)=25.0 V
  • Low On-resistance : Ron=34mΩ (typ.)
  • High-output current rating : IOUT = 0 to 4.0A
  • Input overvoltage clamp function (4 types)
  • Overcurrent limit accuracy : ILIM accuracy =-17%/+14% (Ta=-40 to 125°C, RILIM=487Ω)
  • Output-Short Reaction Time : tSHORT = 2μs (typ.)
  • FLAG function
  • Thin and compact WSON8 package : 2.0×2.0mm (typ.), t=0.8mm (max)

Main Specifications

(Unless otherwise specified, Ta =25°C)

Part number

Operating ranges

Electrical characteristics

Recovery operation type

Other characteristics

Stock Check & Purchase

Input voltage

VIN

(V)

Operation junction temperature

Tj_opr

(°C)

Output current

IOUT

(A)

Over current limit accuracy

ILIM accuracy

(%)

Over voltage clamp

VOVC

(V)

Short circuit response time

tSHORT

(μs)

Current limit response time

tLIM

(μs)

Min/Max

Typ.

Typ.

Typ.

TCKE903NL

2.7 to 23.0

-40 to 125

0 to 4.0

-17/+14 [2]

3.87

2.0

80

Latched

FLAG function

Buy Online

TCKE903NA [1]

Auto-retry

TCKE905NL [1]

5.7

Latched

TCKE905ANA

Auto-retry

Buy Online

TCKE912NL [1]

13.7

Latched

TCKE912NA [1]

Auto-retry

TCKE920NL [1]

22.2

Latched

TCKE920NA [1]

Auto-retry

Notes:

[1] Under development

[2] Ta=-40 to 125°C, RILIM=487Ω

Follow the links below for more on the new products.

TCKE903NL

TCKE903NA

TCKE905NL

TCKE905ANA

TCKE912NL

TCKE912NA

TCKE920NL

TCKE920NA

Follow the link below for more on Toshiba eFuse ICs.

eFuse ICs

To check availability of the new products at online distributors, please visit:

TCKE903NL

Buy Online

TCKE905ANA

Buy Online

* Company names, product names, and service names may be trademarks of their respective companies.

* Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.

About Toshiba Electronic Devices & Storage Corporation

Toshiba Electronic Devices & Storage Corporation, a leading supplier of advanced semiconductor and storage solutions, draws on over half a century of experience and innovation to offer customers and business partners outstanding discrete semiconductors, system LSIs and HDD products.

Its 19,400 employees around the world share a determination to maximize product value, and to promote close collaboration with customers in the co-creation of value and new markets. The company looks forward to building and to contributing to a better future for people everywhere.

Find out more about TDSC at https://toshiba.semicon-storage.com/ap-en/top.html

View source version on businesswire.com: https://www.businesswire.com/news/home/20240717112149/en/

Contact:

Customer Inquiries:
Power & Small Signal Device Sales & Marketing Dept.II
Tel: +81-44-548-2215
Contact Us

Media Inquiries:
Chiaki Nagasawa
Digital Marketing Dept.
Toshiba Electronic Devices & Storage Corporation
semicon-NR-mailbox@ml.toshiba.co.jp

LEAVE A REPLY

Please enter your comment!
Please enter your name here
