Toshiba Launches 2:1 Multiplexer/1:2 Demultiplexer Switches that Support High-Speed Differential Signal Such as PCIe® 5.0 and USB4®

Logo

KAWASAKI, Japan–(BUSINESS WIRE)–Jul. 11, 2024

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has launched “TDS4A212MX” and “TDS4B212MX,” multiplexer/demultiplexer (Mux/De-Mux) switches for high-speed differential signals such as PCIe® 5.0, USB4® and USB4® Ver.2, for PCs, server equipment, mobile devices and more. The new products can be used as a 2-input 1-output Mux switch and a 1-input 2-output De-Mux switch. Shipments start today.

This press release features multimedia. View the full release here: https://www.businesswire.com/news/home/20240710585051/en/

Toshiba:

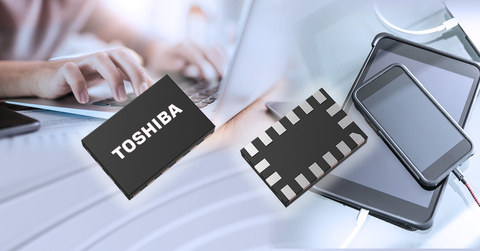

Toshiba: “TDS4A212MX” and “TDS4B212MX,” multiplexer/demultiplexer switches for high-speed differential signals such as PCIe® 5.0, USB4® and USB4® Ver.2, for PCs, server equipment and more. (Graphic: Business Wire)

The new products use Toshiba's proprietary SOI process (TarfSOI™) to achieve very high bandwidths: an industry-leading[1] -3-dB bandwidth (differential) of 27.5GHz(typ.) for TDS4B212MX, and 26.2GHz(typ.) for TDS4A212MX. This allows the new products to be used as a Mux/De-Mux switch for high-speed differential signals such as PCIe® 5.0, USB4® and USB4® Ver.2.

TDS4B212MX and TDS4A212MX have different pin assignments. That of TDS4B212MX is optimized for high-frequency characteristics. TDS4A212MX has a pin assignment that considers circuit board layout.

Note:

[1] As a 2:1 Mux/1:2 De-Mux switch, as of July 11, 2024, Toshiba survey.

Applications

  • PCs, server equipment, mobile devices, wearable devices, etc.

    Supported interfaces: PCIe® 5.0, PCIe® 4.0, PCIe® 3.0, CXL2.0, CXL1.0, USB4® Ver.2, USB4®, USB3.2 Gen2×1, USB3.2 Gen1×1, Thunderbolt™ 4, Thunderbolt™ 3, Thunderbolt™ 2, DisplayPort™ 2.0, DisplayPort™ 1.4, DisplayPort™ 1.3, DisplayPort™ 1.2

Features

  • High -3-dB bandwidth (differential) for high-speed differential signal such as PCIe® 5.0 and USB4®

    TDS4B212MX: -3-dB bandwidth (differential)=27.5GHz (typ.)

    TDS4A212MX: -3-dB bandwidth (differential)=26.2GHz (typ.)

  • Low current consumption: Iope=150μA (max)
  • Small package: XQFN16 (2.4mm×1.6mm (typ.), t=0.4mm (max))

Main Specifications

Part number

TDS4B212MX

TDS4A212MX

Package

Name

XQFN16

Size (mm)

2.4×1.6 (typ.), t=0.4 (max)

Operating ranges

(Ta=-40 to 85°C)

Supply voltage VCC (V)

1.6 to 3.6

Signal pins differential voltage (peak to peak) VI/O(Diff) (V)

0 to 1.8

Signal pins common mode voltage VI/O(Com) (V)

0 to 2.0

DC characteristics

(Ta=-40 to 85°C)

Standby current ISTB (μA)

Max

10

Current consumption Iope (μA)

Max

150

High frequency

characteristics

(Ta=25°C)

-3-dB bandwidth (differential)

BW(Diff) (GHz)

Typ.

27.5

26.2

Differential insertion loss

DDIL (dB)

f=5.0GHz

Typ.

-0.8

-0.9

f=8.0GHz

-0.9

-1.0

f=10.0GHz

-0.9

-1.1

f=12.8GHz

-1.2

-1.4

f=16.0GHz

-1.4

-1.9

Differential return loss

DDRL (dB)

f=5.0GHz

Typ.

-17

-15

f=8.0GHz

-15

-14

f=10.0GHz

-20

-17

f=12.8GHz

-17

-17

f=16.0GHz

-16

-18

Differential OFF isolation

DDOIRR (dB)

f=5.0GHz

Typ.

-20

-20

f=8.0GHz

-17

-19

f=10.0GHz

-16

-17

f=12.8GHz

-17

-12

f=16.0GHz

-14

-11

Differential crosstalk

DDXT (dB)

f=5.0GHz

Typ.

-56

-36

f=8.0GHz

-48

-34

f=10.0GHz

-44

-32

f=12.8GHz

-39

-31

f=16.0GHz

-36

-30
